设备类型 Equipment Categories
A 系列覆盖 A1000 标准一米级与 A1500 大尺寸平台，以 FGF 颗粒挤出为重点，同时提供 2.85mm 与 1.75mm 丝材方案，并根据工件尺寸、表面要求、材料性能与单位产出匹配配置。 The A series covers the standard 1-meter A1000 and large-format A1500 platforms, led by FGF pellet extrusion with 2.85mm and 1.75mm filament options. Configurations are matched to part size, finish, material performance and output.
整机展示 / MACHINE SHOWCASEMACHINE SHOWCASE / A SERIES
从标准 1 米级设备到 1.5 米级大尺寸平台，延续统一的工业结构、控制系统与模块化配置能力。From the standard 1-meter system to the 1.5-meter large-format platform, both share a unified industrial architecture, controls and modular configuration.

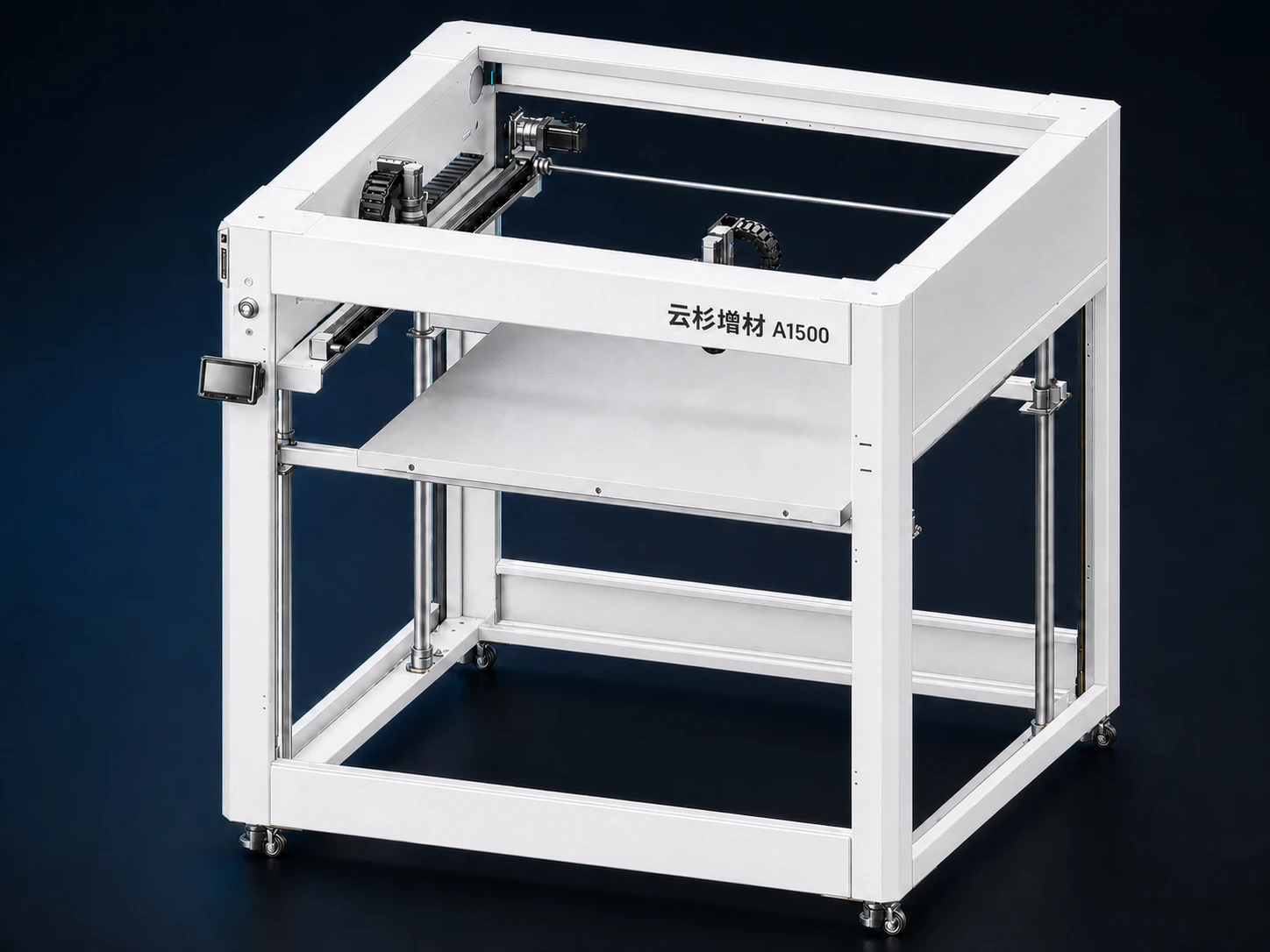

1.5 米级1.5 M CLASS
面向大型模具、雕塑、展陈装置与工业构件，标准成型空间 1500 × 1500 × 1200 mm。Built for large molds, sculpture, display installations and industrial parts, with a standard 1500 × 1500 × 1200 mm build volume.

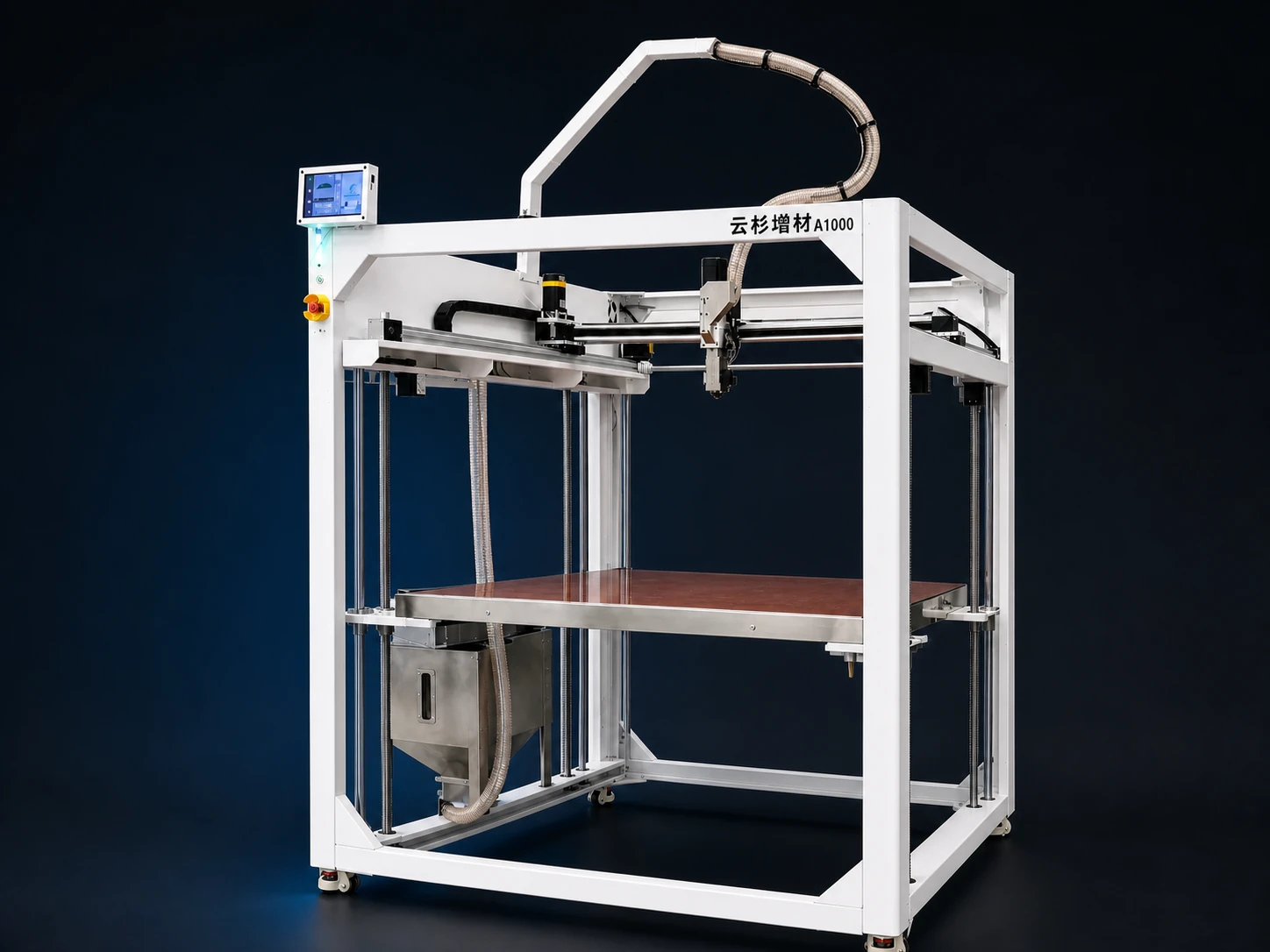

1 米级1 M CLASS
兼顾占地、成型能力与配置灵活性，标准成型空间 1000 × 1000 × 1000 mm。Balances footprint, build capacity and configuration flexibility with a standard 1000 × 1000 × 1000 mm build volume.
成型空间BUILD VOLUME
根据工件外形、打印路径和现场空间选择合适的成型尺寸，非标项目可结合设备布局与工艺需求定制。Select a build volume according to part geometry, toolpath and site space. Custom configurations are available for specialized layouts and process requirements.
尺寸标注顺序：X × Y × Z；具体可用成型空间以最终设备配置为准。Dimension order: X × Y × Z. Usable build volume is subject to the final machine configuration.
挤出方案 / EXTRUSION SYSTEMSEXTRUSION SYSTEMS
在统一的大尺寸设备平台上，可根据材料形态、产出效率、表面细节与项目预算选择颗粒或丝材挤出系统。Choose pellet or filament extrusion on a unified large-format platform according to material form, throughput, surface detail and project budget.

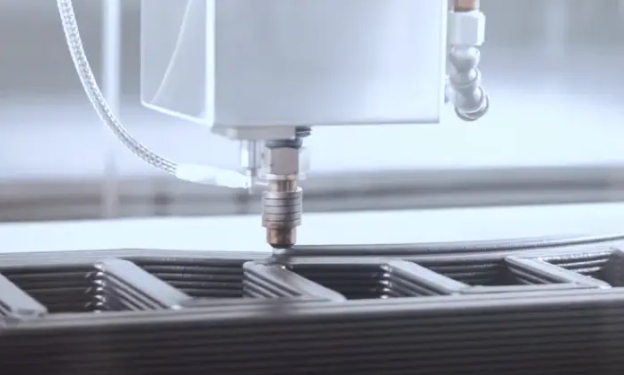

采用伺服电机驱动颗粒挤出系统，面向高流量、大体积工业成型。 Servo-driven pellet extrusion for high-throughput, large-volume industrial production.

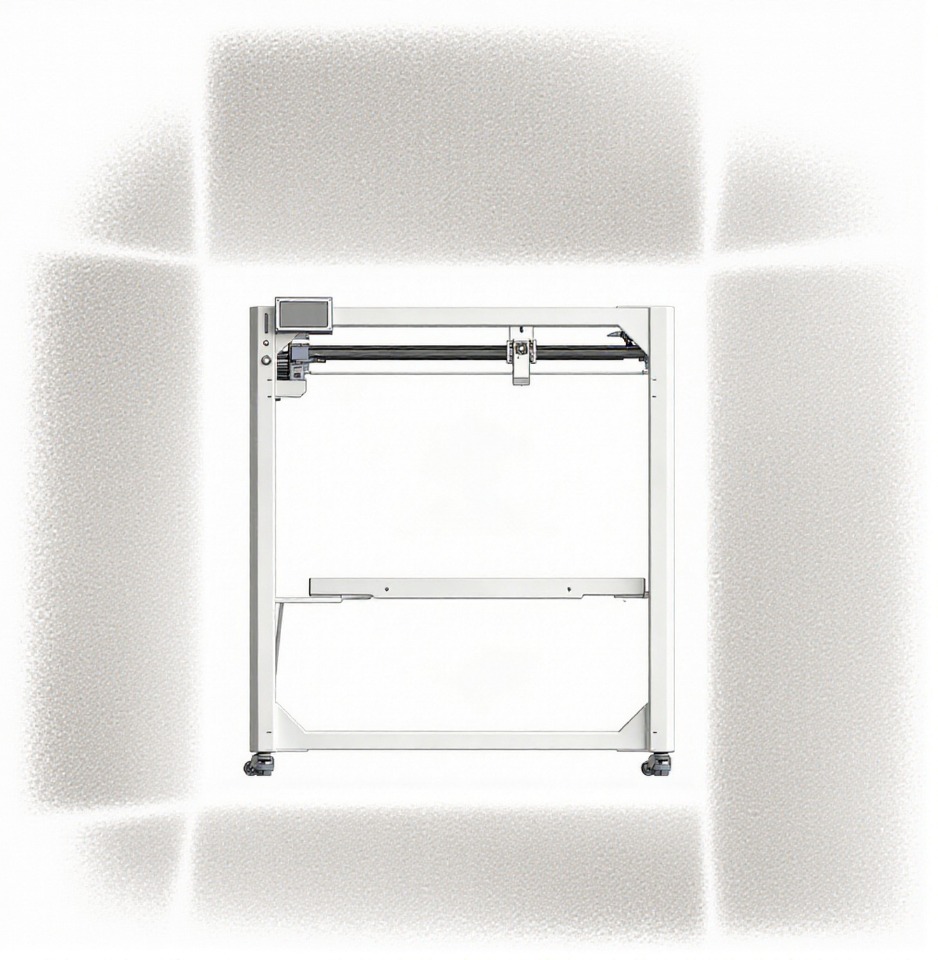

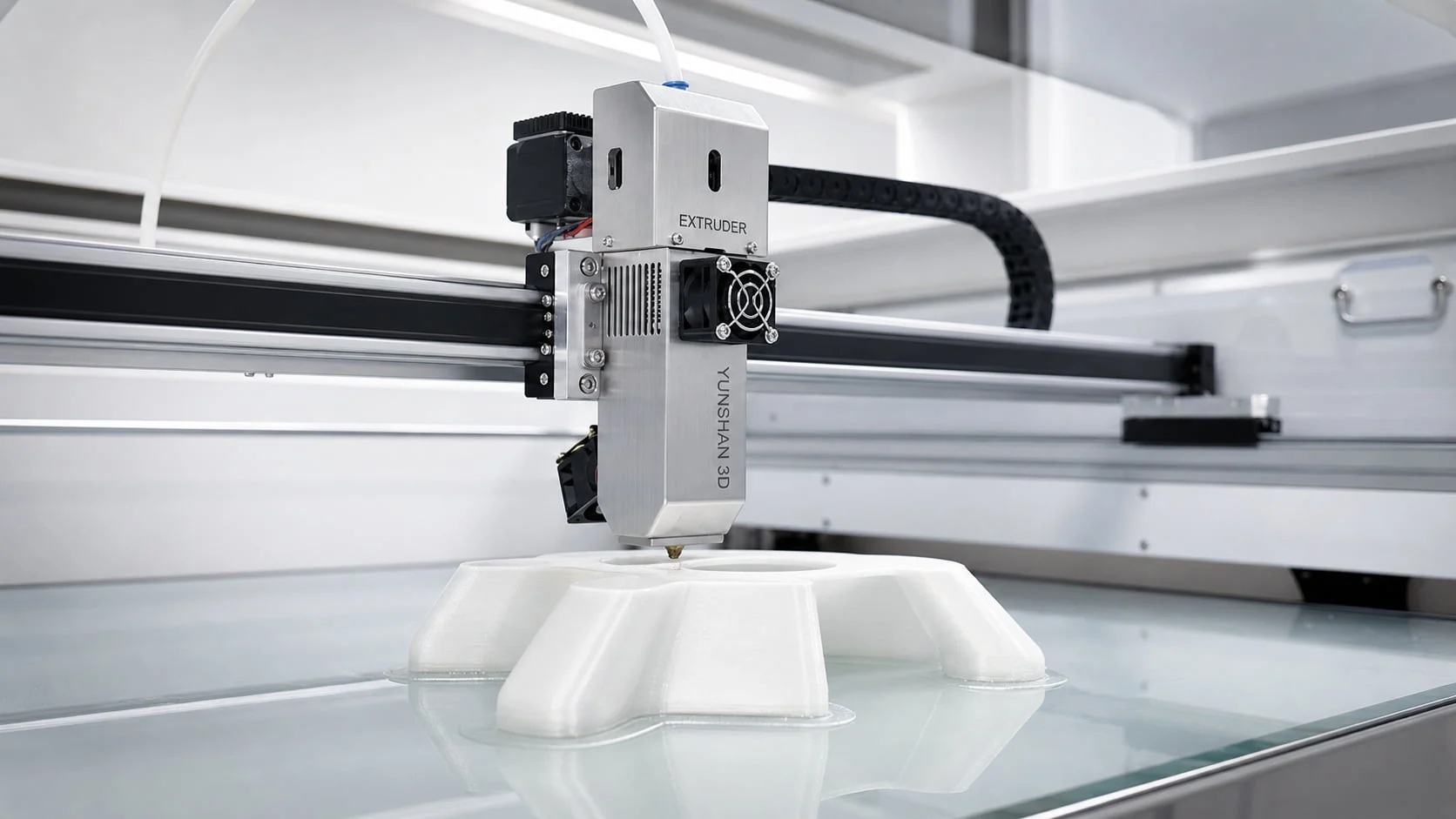

使用 2.85mm 直径耗材打印，面向创意与工程型大尺寸成型。 Uses 2.85mm filament for large-scale creative and engineering prints.
使用 1.75mm 直径耗材打印，兼顾精度与速度。 Uses 1.75mm filament, balancing precision and speed.

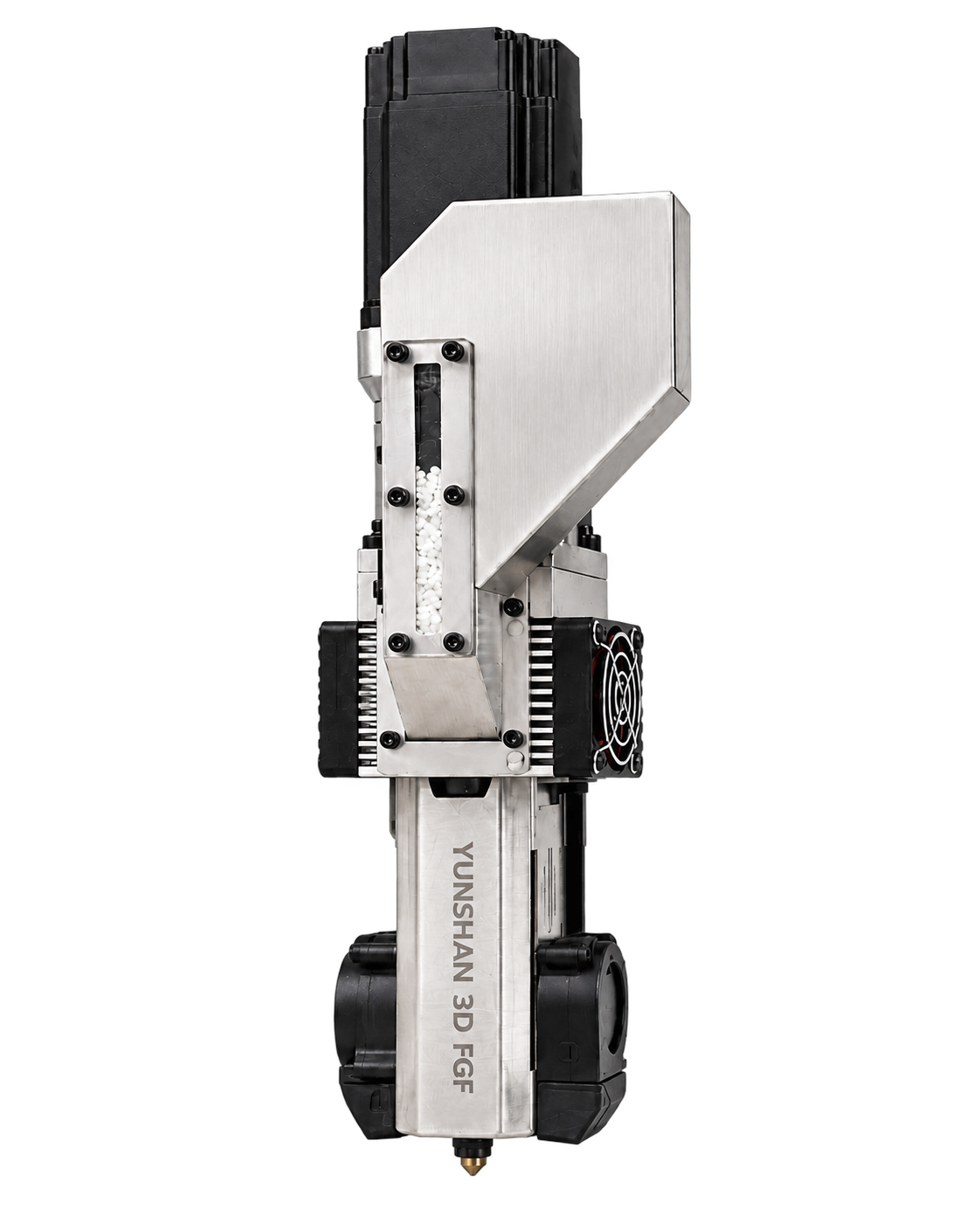

核心部件 / CORE COMPONENT CORE COMPONENT / FGF
面向大尺寸增材制造的核心挤出单元，将颗粒供料、伺服驱动、挤出与热管理集成为紧凑结构，服务于高流量、长时间的工业打印任务。 A core extrusion unit for large-format additive manufacturing, integrating pellet feeding, servo drive, extrusion and thermal management in a compact industrial assembly.
颗粒直供Direct Pellet Feed
透明料窗，供料状态直观可见Visible feed path through a transparent inspection window伺服驱动Servo Drive
采用伺服电机，提升挤出响应与控制稳定性Servo motor for responsive, stable extrusion control系统配套System Integration
面向 A1000-FGF 颗粒打印系统Engineered for the A1000-FGF platform颗粒打印优势WHY PELLET EXTRUSION
FGF 直接使用适合 3D 打印的塑料颗粒，省去制丝环节，在材料选择、单位成本、挤出效率与打印件性能方面形成综合优势。FGF directly processes 3D-printable pellets, eliminating filament production and providing combined advantages in material choice, unit cost, extrusion efficiency and part performance.
颗粒材料体系覆盖面更广，并省去制成线材的加工环节，在大用量打印中具有明显的原料成本优势。A broader pellet material range avoids filament conversion and offers a clear raw-material cost advantage for high-volume printing.
伺服驱动颗粒挤出系统支持高流量沉积，可缩短大型工件成型周期，提高单位时间产出。Servo-driven pellet extrusion supports high deposition flow, shortening large-part build cycles and increasing output.
在匹配材料与工艺参数的条件下，颗粒打印可达到与 2.85mm 丝材打印相当的打印精度。With matched materials and process parameters, pellet printing can achieve precision comparable to 2.85mm filament printing.
直接使用颗粒减少制丝过程中的重复加热与性能损耗，有利于更好保留材料原有性能。Direct pellet processing reduces repeated heating and property loss during filament production, helping preserve material performance.
从颗粒高流量到丝材精细成型，最终配置以具体工件、材料测试与产出目标为准From high-flow pellets to detail-oriented filament, final configuration depends on the part, material test and output target.
| 型号Model | 主要优势Strength | 适合任务Best For | 选型关注点Consideration |
|---|---|---|---|
| A1000-FGF | 材料更多、成本更低、高流量，精度媲美 2.85mm 丝材More materials, lower cost, high flow and precision comparable to 2.85mm filament | 大型装置、模具、大体积功能构件Large installations, molds and functional parts | 确认颗粒适印性、收缩率与层间结合力；原厂耗材已完成工艺匹配Verify printability, shrinkage and interlayer bonding; original materials are process-matched |
| A1000-2.85 | 流量与细节兼顾Balanced throughput and detail | 雕塑、模具、建筑模型Sculpture, tooling, architectural models | 适合通用型大尺寸成型Versatile large-format applications |
| A1000-1.75 | 材料选择广、细节表现好Broad material choice and finer detail | 手板、功能原型、精细模型Prototypes, functional parts, detailed models | 适合更看重表面与细节的项目Prioritizes finish and detail |
围绕稳定性、效率与易维护设计，满足工业级长期运行需求 Designed for stability, efficiency, and easy maintenance for industrial operation
高刚性模块化框架面向长时间、大体积任务，降低持续运行中的振动与形变，保障稳定成型。 A high-rigidity modular frame reduces vibration and deformation during long-duration, large-format production.
适配 1.75mm、2.85mm 丝材与颗粒原料，以不同流量和精度组合兼顾快速迭代、小批量生产与大型构件制造。 Supports 1.75mm and 2.85mm filament plus pellets, balancing throughput and precision across prototypes, small batches and large parts.
设备控制系统提供状态采集、异常信息与按需远程查看，帮助用户掌握长时间任务进度并提高运维效率。 Telemetry, fault information and on-demand remote viewing improve visibility and maintenance efficiency for long-running jobs.
A 系列技术规格 / TECHNICAL DATATECHNICAL DATA / A SERIES
覆盖成型能力、运动与挤出硬件、软件兼容性及设备功能。实际配置可根据打印尺寸、材料与应用需求进行定制。 A complete overview of build capability, motion and extrusion hardware, software compatibility and machine functions. Final configuration can be tailored to build size, material and application requirements.
| 打印参数Print Configuration | |
|---|---|
| 可打印尺寸Printing Dimensions | 1000 × 1000 × 1000 mm1500 × 1500 × 1200 mm支持非标定制成型尺寸Custom build dimensions supported |
| 设备尺寸Device Dimensions | 1400 × 1350 × 2000 mm2000 × 2160 × 2000 mm |
| 成型方式Molding Process | FGF |
| 适用领域Applicable Fields | 雕塑、模具、美陈、汽车、科研等领域Sculpture, molds, art displays, automotive and scientific research |
| 喷嘴尺寸Nozzle Size | 1.0 mm、1.5 mm、2.0 mm1.0 mm, 1.5 mm, 2.0 mm高分子涂层喷嘴Polymer-coated nozzle |
| 喷嘴温度Nozzle Temperature | 0 - 300 °C |
| 热床温度Bed Temperature | 0 - 100 °C |
| 打印材料Printing Materials | PLA、PETG、ABS、ASA、PP 等PLA, PETG, ABS, ASA, PP and more |
| 打印速度Print Speed | 10 - 300 mm/s |
| 打印精度Printing Accuracy | ± 0.2 mm1.5 mm 喷嘴典型工况Typical value with a 1.5 mm nozzle |
| 硬件配置Hardware | |
| 热床材质Bed Material | 玻璃 / 铝合金，可定制Glass / aluminum alloy, customizable |
| XY 轴模组XY-axis Module | 高精度线性模组 + 闭环混合伺服电机High-precision linear module + closed-loop hybrid servo motor |
| Z 轴模组Z-axis Motion Module | Φ20 滚珠丝杠 + Φ25 光轴Φ20 ball screw + Φ25 optical axis |
| 挤出机Extruder | 氮化螺杆 + 伺服驱动电机Nitrided screw + servo motor |
| 操作屏Screen | 7 英寸智能触摸屏7-inch intelligent touch screen |
| 结构框架Device Structure | 全钢钣金框架 + 烤漆工艺Full sheet-metal frame + baked-paint finish |
| 其他配置与功能Other Functions | |
| 切片软件Software | YUNSHAN3D Slicer、OrcaSlicer、CuraYUNSHAN3D Slicer, OrcaSlicer, Cura |
| 文件格式File Type | STL、STP、OBJ、3MFSTL, STP, OBJ, 3MF |
| 操作系统OS | Windows、macOSWindows, macOS |
| 工作电压Operating Voltage | 220 V需可靠保护接地Reliable protective grounding required |
| 整机功率Total Machine Power | 2500 W |
| 特色功能Featured Features | 云智控（微信远程监控 / 控制）、断电续打、断料检测、自动上料Cloud intelligent control with WeChat remote monitoring/control, power-off resume, material-runout detection and automatic feeding |
提供模型尺寸、材料、精度和预计产量，我们会给出配置建议。Share part size, material, accuracy and expected output for a configuration recommendation.
